MIRA Safety Gas Mask Microphone (CM-6M, CM-7M, CM-8M, & TAPR)

  • Compatible with all adult-sized MIRA Safety respirators
  • IP67-rated for protection against dust, water, and oil
  • 2-pin connector for compatibility with Peltor and Ops-Core headsets
BLACK FRIDAY OFFER
SAVE 25%
1
Regular price $149.95
Regular price
Sale price $112.46
BLACK FRIDAY PRICE

OUR PRODUCTS ARE TRUSTED BY PROFESSIONALS ALL OVER THE GLOBE

We have established firm relationships with agencies worldwide and are deployed by:

United States Department

The United States

DEPARTMENT OF DEFENSE

Czech Ministry

Czech Republic

MINISTRY OF DEFENSE

Turkmenistan Ministry

Turkmenistan

MINISTRY OF INTERIOR

Turkey Ministry

Turkey

MINISTRY OF INTERIOR

South Africa Ministry

South Africa

MINISTRY OF INTERIOR

Romania Ministry

Romania

MINISTRY OF DEFENSE

Portugal Ministry

Portugal

MINISTRY OF INTERIOR

Lithuania Ministry

Lithuania

MINISTRY OF INTERIOR

Arms of Latvia

Latvia

MINISTRY OF INTERIOR

Ukraine Ministry

Ukraine

MINISTRY OF DEFENSE

Shop with Confidence

If it doesn't fit, we will acquit

Free exchanges

Free shipping for

all U.S. orders

Got a question before you order?

Call us at 888-316-1462

Description

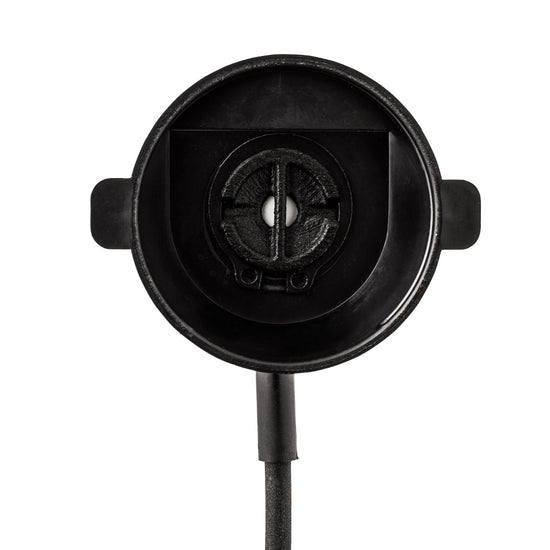

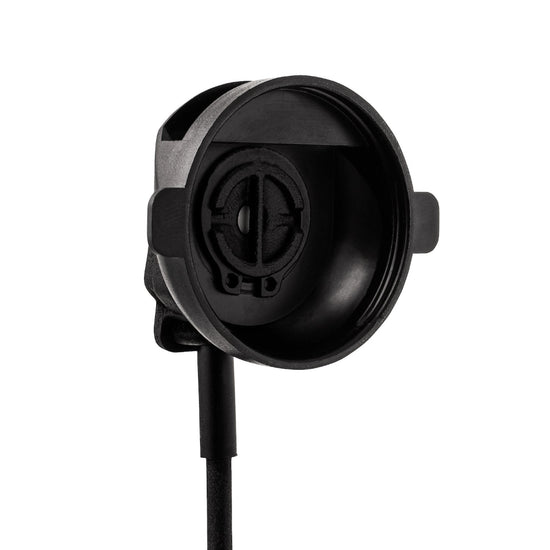

Get crystal clear communication in any environment with the MIRA Safety Gas Mask Microphone. It’s engineered to replace the existing exhalation valve cover of your MIRA Safety gas mask, an upgrade that can be installed in seconds without tools. This microphone offers integrated noise-canceling functionality with no additional power needed.

Key Benefits of MIRA Safety Gas Mask Microphone

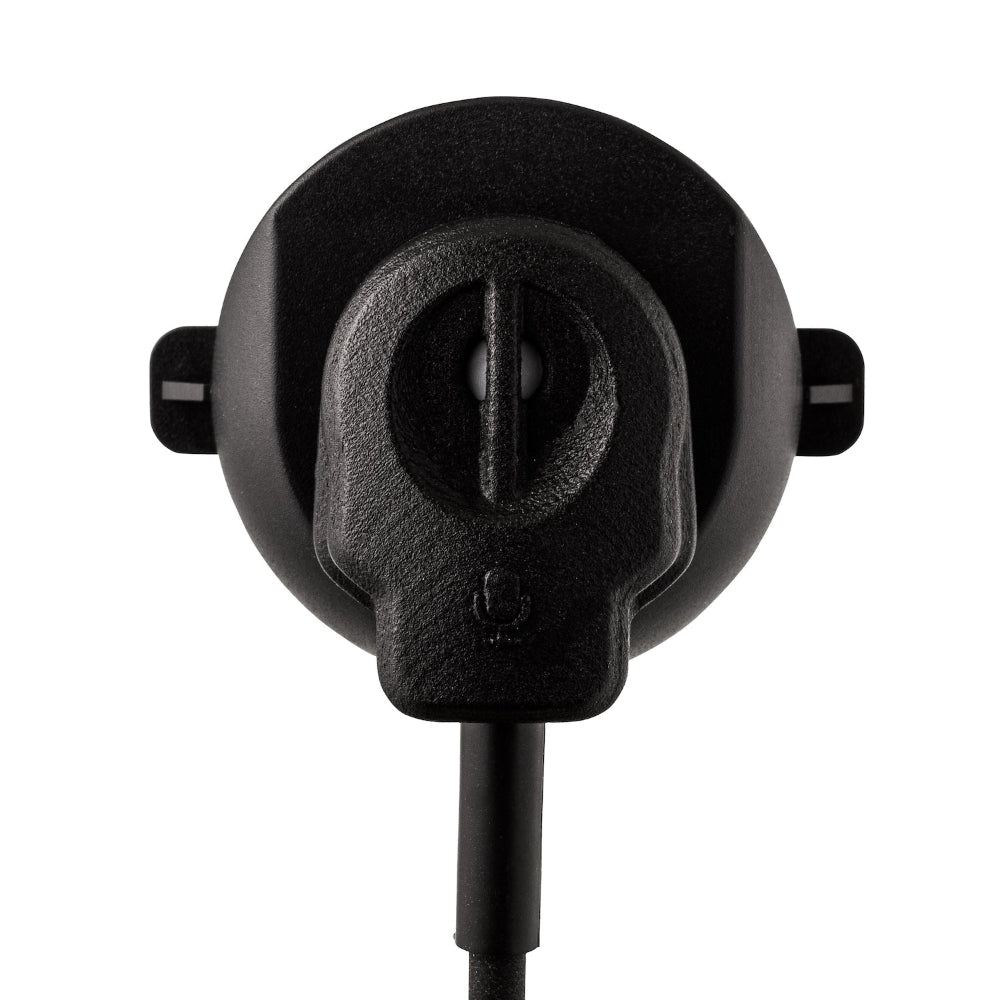

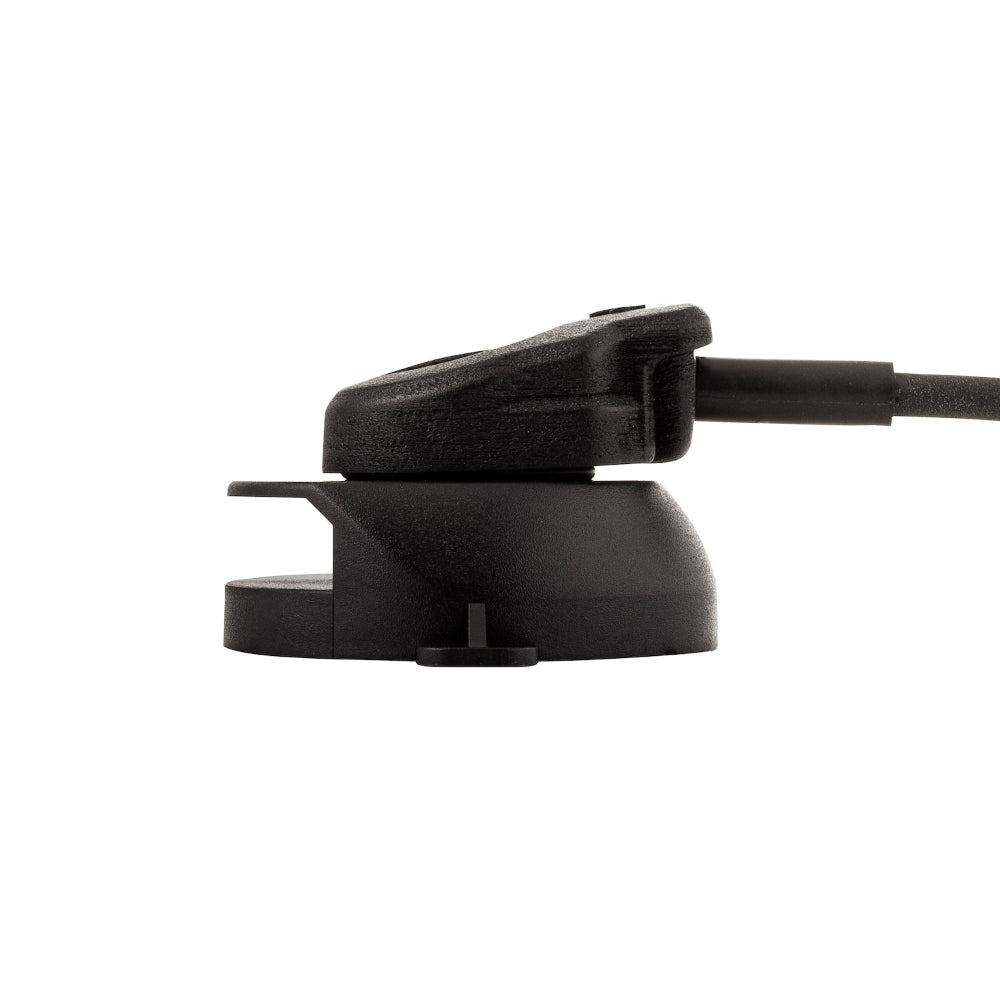

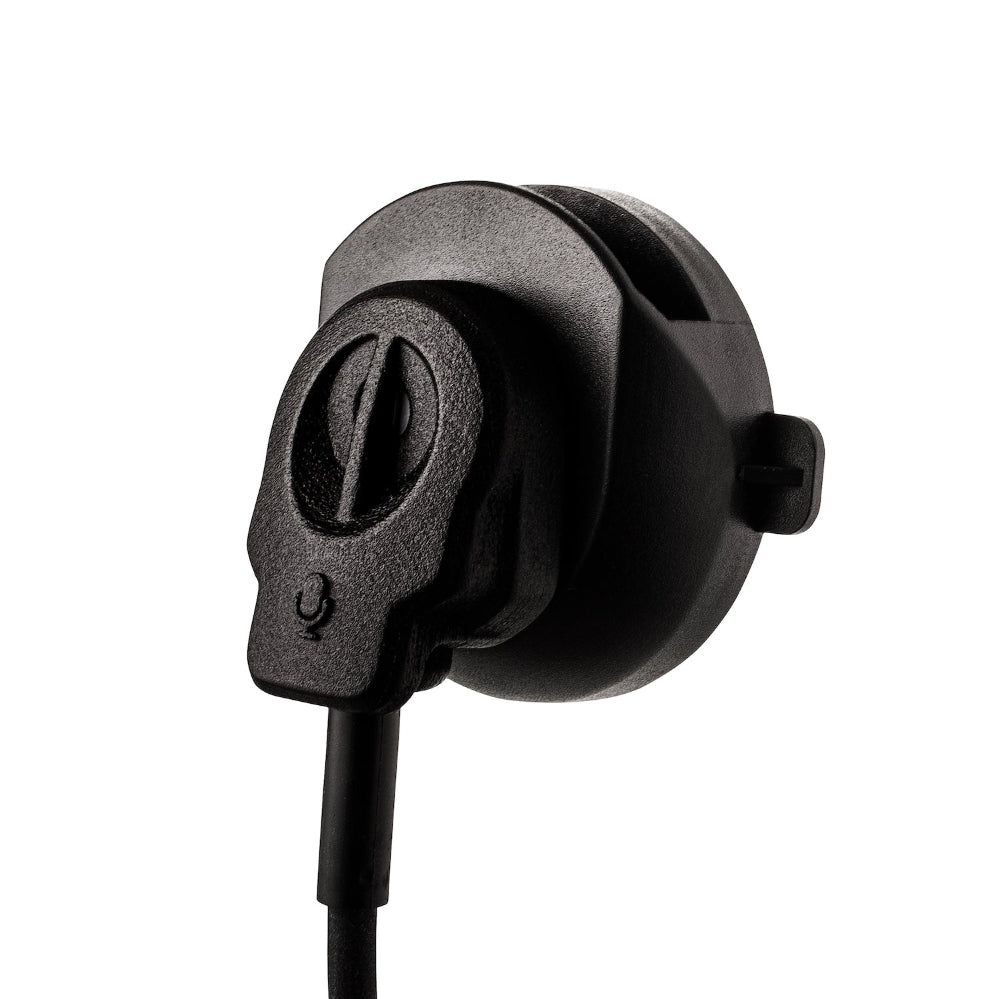

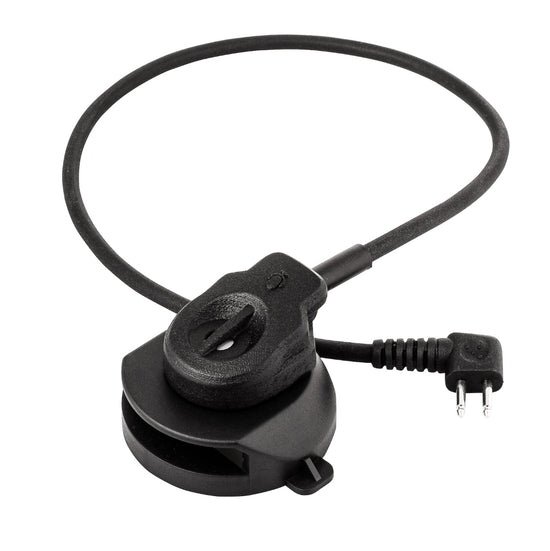

  • Noise-canceling, dynamic, moving-coil microphone in a tough polymer housing

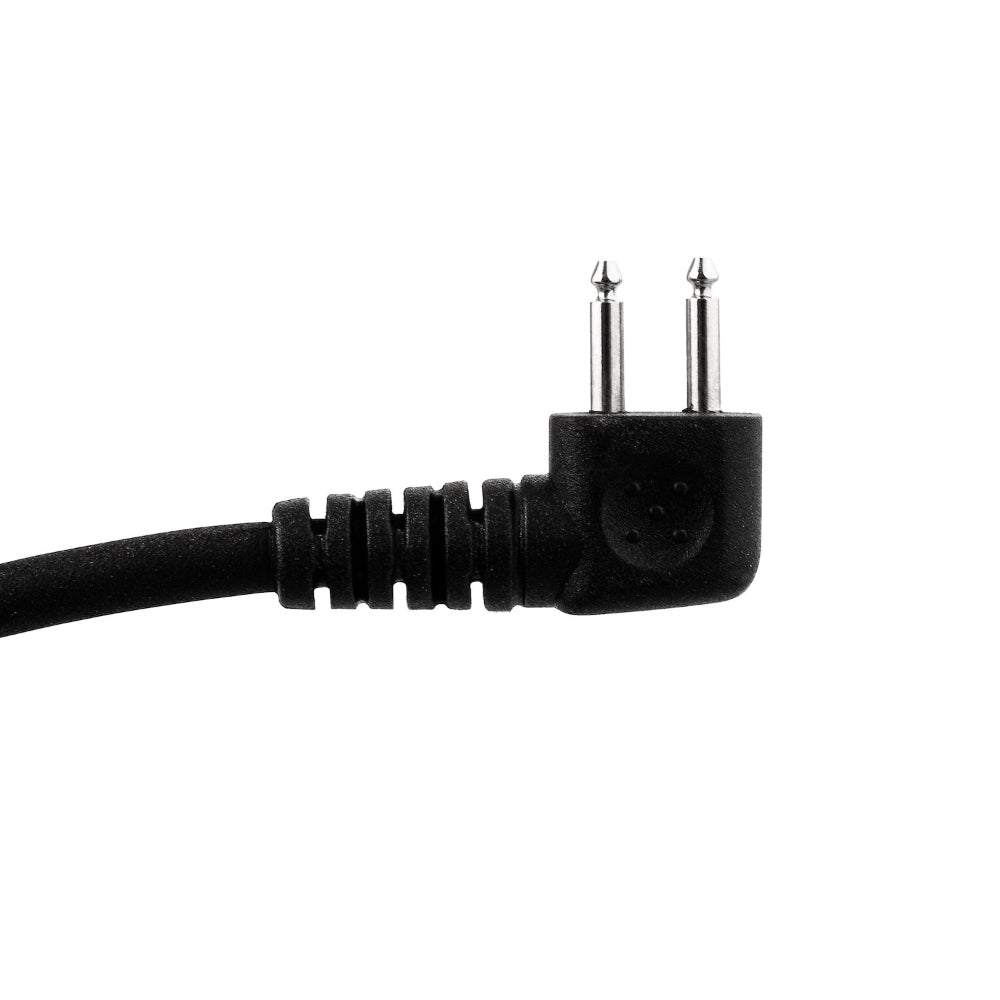

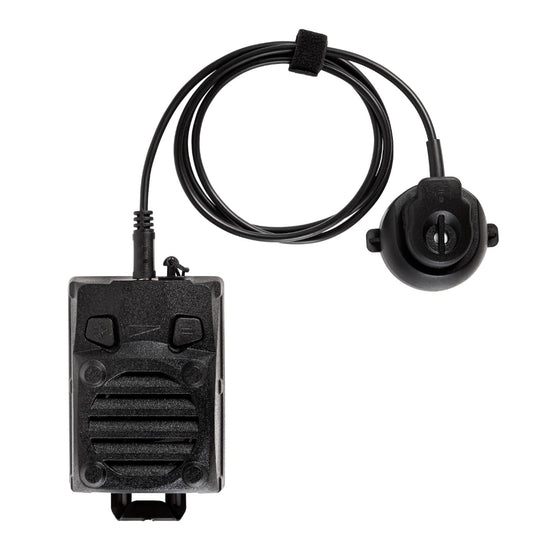

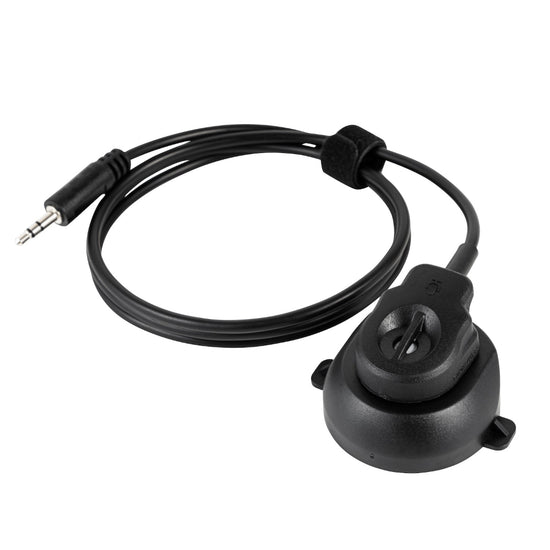

  • Available in a 2-pin NEXUS U-173/U connector for compatibility with Peltor and Ops-Core headsets, or 3.5mm version which is compatible with the VPU-1

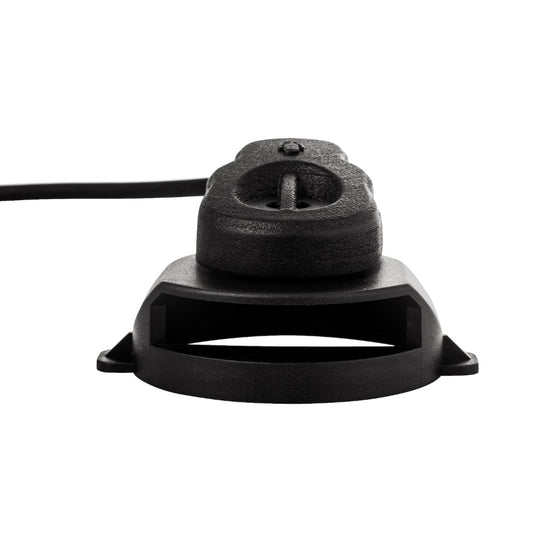

  • Replaces your existing gas mask exhalation valve cover for quick and easy installation (no expert installation needed)
  • Heavy-duty polymer construction with durable retaining ring
  • Serviceable, with parts available in case of damage
  • Optimized for all-weather use (-33°C to +77°C) in any environment

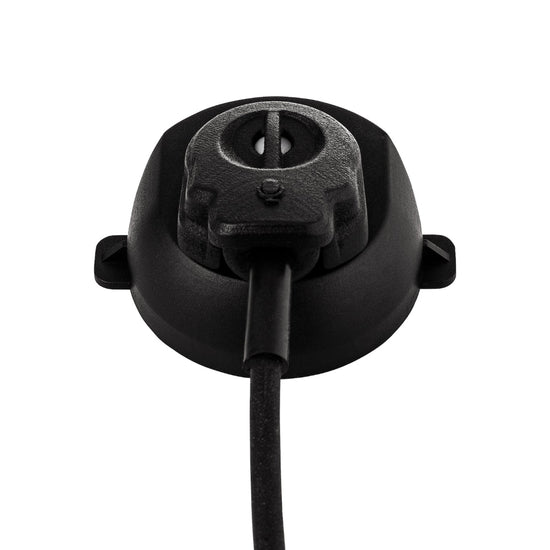

  • Pivoting cable allows for easy ambidextrous alignment
  • Engineered to meet MIL-STD-461G and MIL-STD-810G
  • Provides an average of over 30,000 hours of use
  • IP67-rated for protection against dust, water, and oil
  • Can be fully submerged in up to 3 feet of water for ½ hour (not recommended)
  • Weighs less than two ounces (2 oz.), including the cable
  • Made in the Czech Republic


MIRA Safety gas masks come with enhanced speech diaphragms that allow for improved communication over shorter distances. But talking through a gas mask is never easy. Especially if you’re not right next to each other or you’re dealing with any noise, weather, or other distractions.

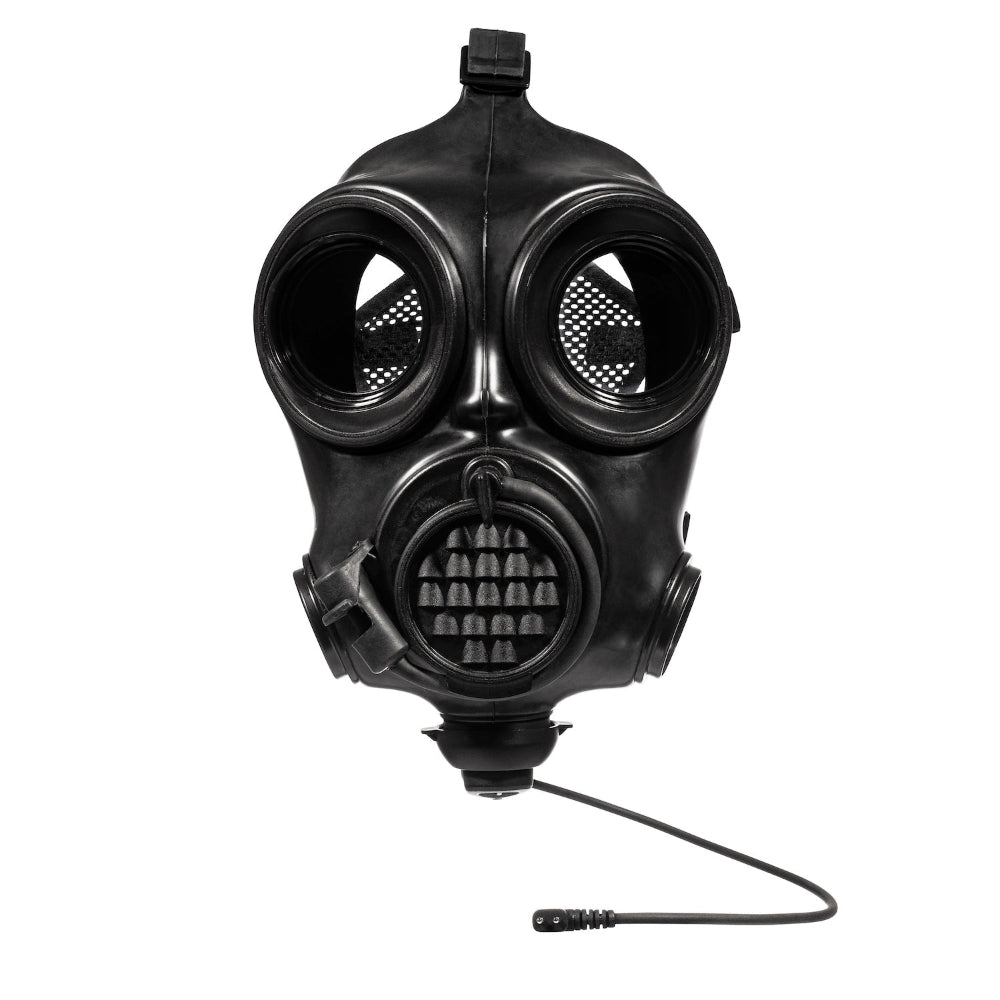

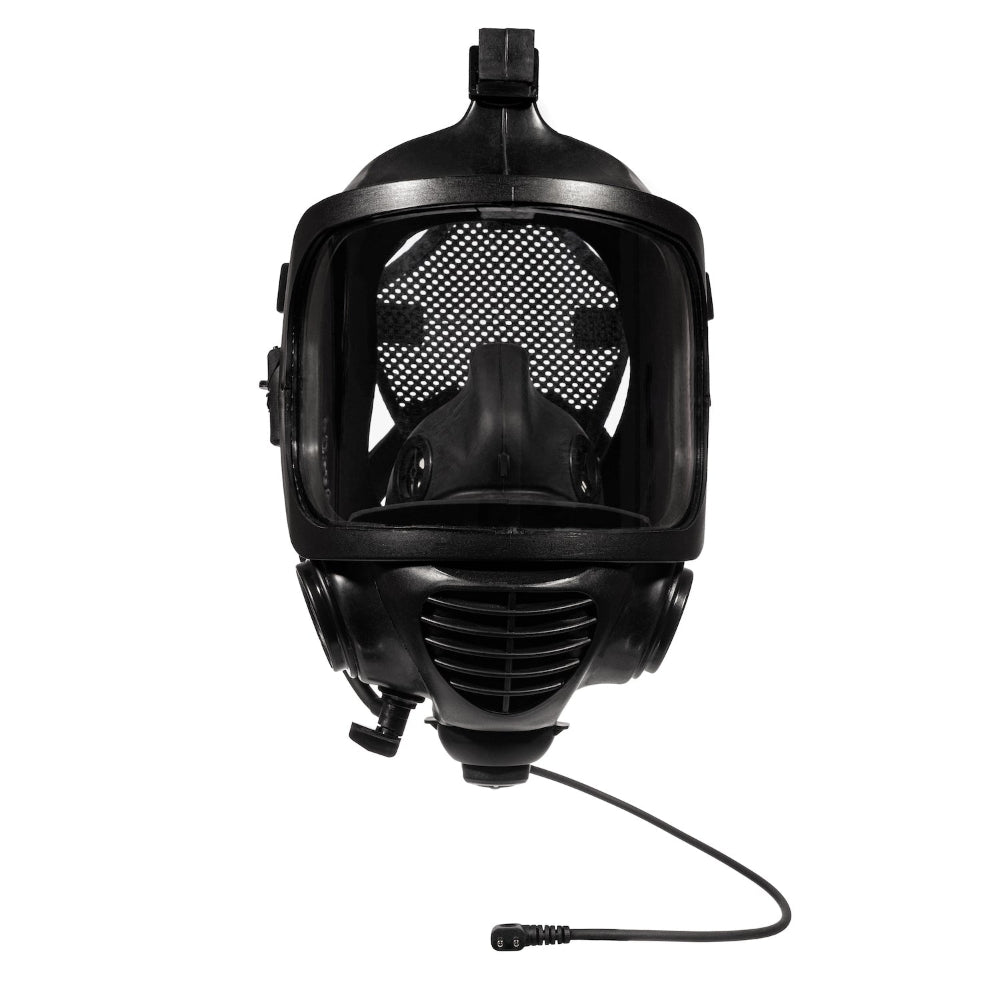

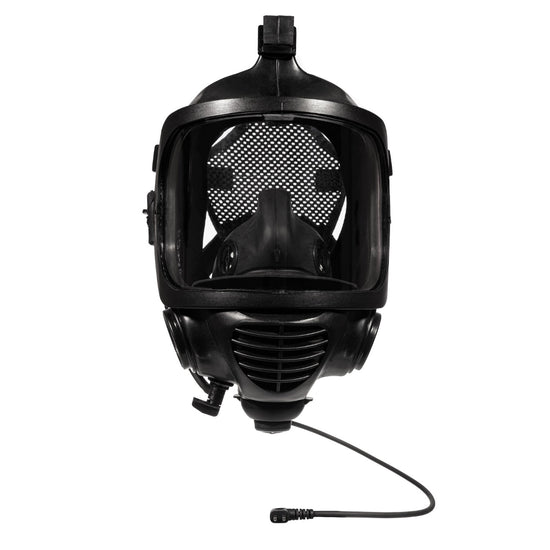

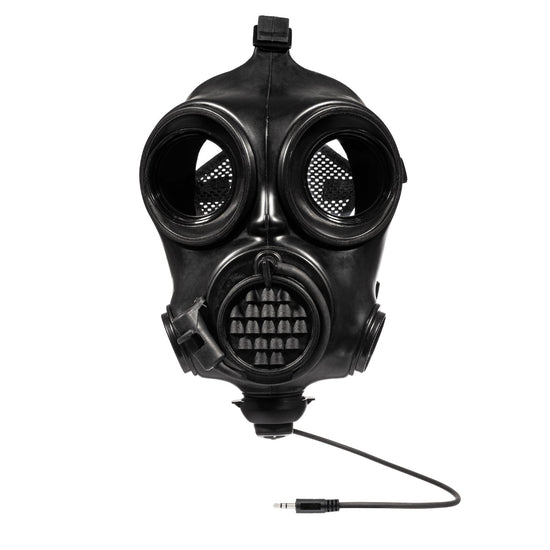

The MIRA Safety Gas Mask Microphone is cross-compatible with all CM series adult-sized MIRA Safety gas masks (CM-6M, 7M, 8M), making it easy to swap between masks for different types of missions.

Installation takes just a few seconds, and you’re ready to connect to your existing communication system. Just like a standard headset, the microphone requires no additional power, and it has an average life expectancy of 30,000 hours.

Gas mask microphones are a relatively minor upgrade that can make a massive difference while using your mask. Communicating via hand signals is difficult in the best situation, and it’s impossible if you’re holding a rifle or riot shield. Having the ability to plug into your existing comms helps you stay better informed and make better decisions when they matter most.

Gas Mask Microphone Technical Data:

Electro-Acoustic Data
Type: Noise cancelling, Dynamic, Moving Coil
Output Impedance (1kHz): 150Ω ± 10%
Real Output Level (at usual voice level): 3.5mV rms ± 10%
Harmonic Distortion: max. 5% over a bandwidth of 315 Hz to 4000 Hz
Frequency Response (94 dB SPL, 1/1 octave bands): 500 Hz -5 ± 3 dB
1000 Hz Reference
2000 Hz 0 ± 3 dB
4000 Hz 2 ± 3 dB



Environmental & Other Data
Weight (including cable): 50g ± 10%

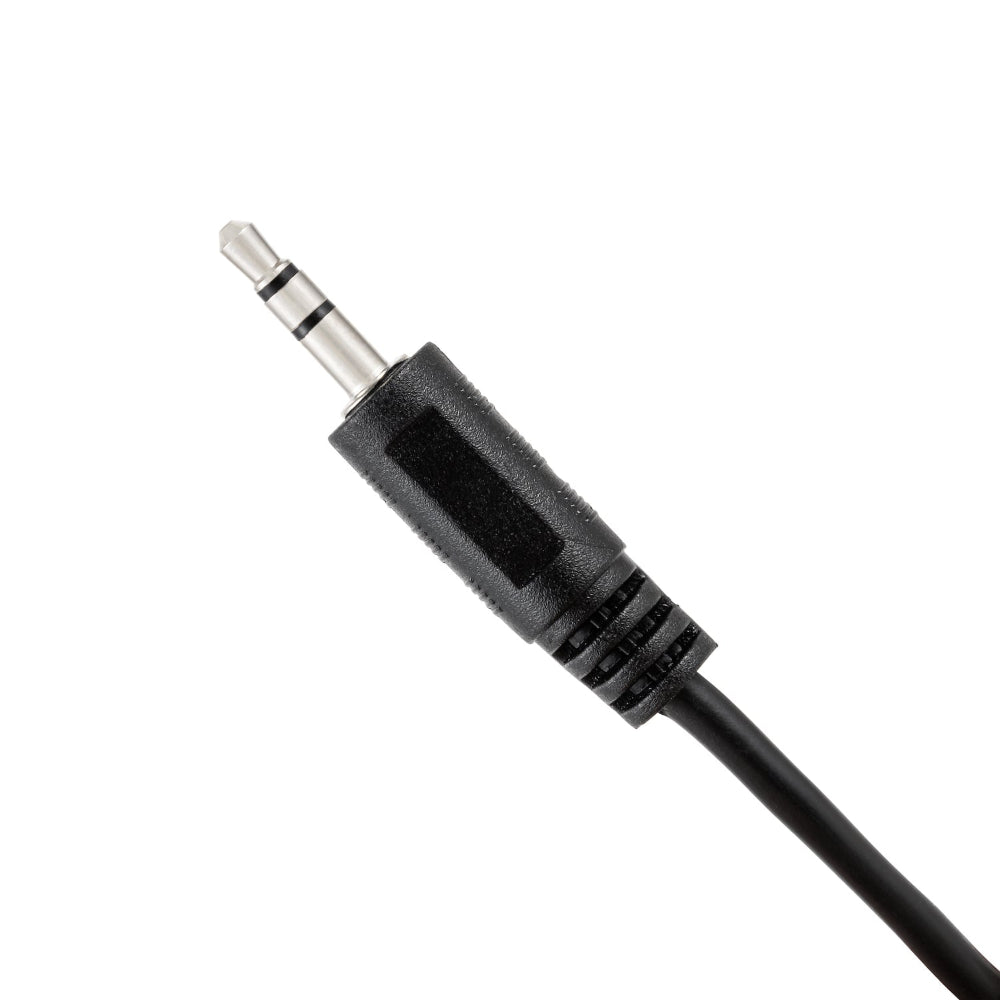

Cable Connector Type: NEXUS U-173/U OR 3.5mm Jack
Cable Connector Pinout: 1 - Microphone Signal (MIC +)
2 - Microphone Signal (MIC -)
Cable Length: 400mm 150Ω ± 5%
Cable Strength: 20 N / 20 S
Operating Temperature: (-33 to +71) °C
CE Certification:
Approved according to PPE directive 89/686/EEC and EMC directive 89/336/EEC
EMC / EMI: Designed in accordance with MIL-STD-461G
Environmental: Designed in accordance with MIL-STD-810G
CBRN: Designed in accordance with ČSN EN 140
Ingress Protection (IEC standard 60529): IP67
Flame Retardant Properties (UL 94): min. level V2
Mean Time Between Failures (MTBF): >30,000 hours


IMPORTANT NOTE: This gas mask microphone is ONLY compatible with MIRA Safety respirators. This includes the CM-6M, CM-7M, CM-8M, and the TAPR.


QUESTIONS & ANSWERS

Ask a Question
  • The product description states that the microphone body is made out of "heavy-duty polymer construction." Can you tell me the exact plastic that you guys are using?

    The Microphone's body is made of polyamide, and the exhalation cap is made of a mixture of polyphenylene oxide and styrene (the mic is embedded into a standard exhalation cap, similar to what you'd find on a stock mask).
