COMPARISON CHART


FILTER MODEL / PARAMETER	NBC-77-SOF	P-CAN®	VK-530	VK-700	NBC-17-SOF COMPACT	DotPro 330	PARTICLEMAX P3	P-CAN COMPACT
Summary	Protects against CBRN threats, riot control agents, toxic industrial chemicals, and radioactive methyl iodide.	Removes riot control agents with higher absorption than the P-CAN Compact.	Protects against toxic chemicals and converts CO to CO2, but not for full CBRN protection.	Special Combined Filter Cartridge offers broader protection and double the lifespan compared to the VK-530, filtering multiple harmful substances.	The lightweight NBC-77 SOF offers similar protection at lower concentrations, enhancing mobility without compromising safety.	Offers comprehensive Toxic Industrial Chemicals protection , mercury vapor filtration, and durability with a 5-year shelf life.	Removes 99.995%+ of particulates, offering superior filtration with larger size and weight savings.	The compact P-CAN efficiently filters riot control gases with significant weight and size savings.
External Approvals	EN 14387:2004+A1:2008, DIN 58621:2011	EN 14387+A1	EN 14387:2004+A1:2008, DIN 58620:2007, EN 143:2000+A1:2006	EN 14387:2004+A1:2008, DIN 58620:2007, EN 14387:2001	EN 14387 +A2	EN 14387:2004+A1:2008	EN 143:2000, EN 12941:1998, EN 12942:1999	EN 14387+A1
Country of Origin	Czech Republic	Czech Republic	Italy	Czech Republic	Czech Republic	Czech Republic	Czech Republic	Czech Republic
Rating	A2B2E2K2HgSX P3 D R REACTOR	A2SXP3 D R (OC, CR, CS)	A2B2E2K2HgNO20COP3R	A2B2E2K2HgNOCO20P3	A2B1E1K1 P3 D R	A2B2E2K2HgP3	P3 R D	A1SXP3 D R (OC, CR, CS)
Filter Thread Type	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm
Breathing Resistance (typical)	<140 Pa at 30 L/min	<160 Pa at 30 L/min	<220 Pa at 30L/min	<190 Pa at 30 L/min	<200 Pa at 30 L/min	<190 Pa at 30 L/min	~60 Pa at 30 L/min	<200 Pa at 30 L/min
Diameter	110 mm	110 mm	106 mm	110 mm	90 mm	110 mm	110 mm	90 mm
Height	85 mm	75 mm	111 mm	95 mm	85 mm	85 mm	55 mm	85 mm
Average weight	335 g	290 g	500 g	450 g	205 g	360 g	100g	205 g
Shelf-life in storage	20 years	10 years	5 years	10	10 years	5 years	20 years	10 years
Provides protection from:
Particles	✅	✅	✅	✅	✅	✅	✅	✅
Organic gases & vapours (> 65°C)	✅	✅	✅	✅	✅	✅	❌	✅
Inorganic gases & vapours (not CO)	✅	❌	✅	✅	✅	✅	❌	❌
Acid gases	✅	❌	✅	✅	✅	✅	❌	❌
Ammonia and organic derivatives	✅	❌	✅	✅	✅	✅	❌	❌
Nitrogen oxides	❌	❌	✅	✅	❌	❌	❌	❌
Carbon monoxide	❌	❌	✅	✅	❌	❌	❌	❌
Mercury vapours	✅	❌	✅	✅	❌	✅	❌	❌
Radioactive iodine	✅	❌	❌	❌	❌	❌	❌	❌
Price	^$79.99 – ^$799.99	^$39.95	^$89.99	^$99.97	^$49.95	^$59.96	^$160.00	^$37.95
	Shop now	Shop now	Shop now	Shop now	Shop now	Shop now	Shop now	Shop now

1 2

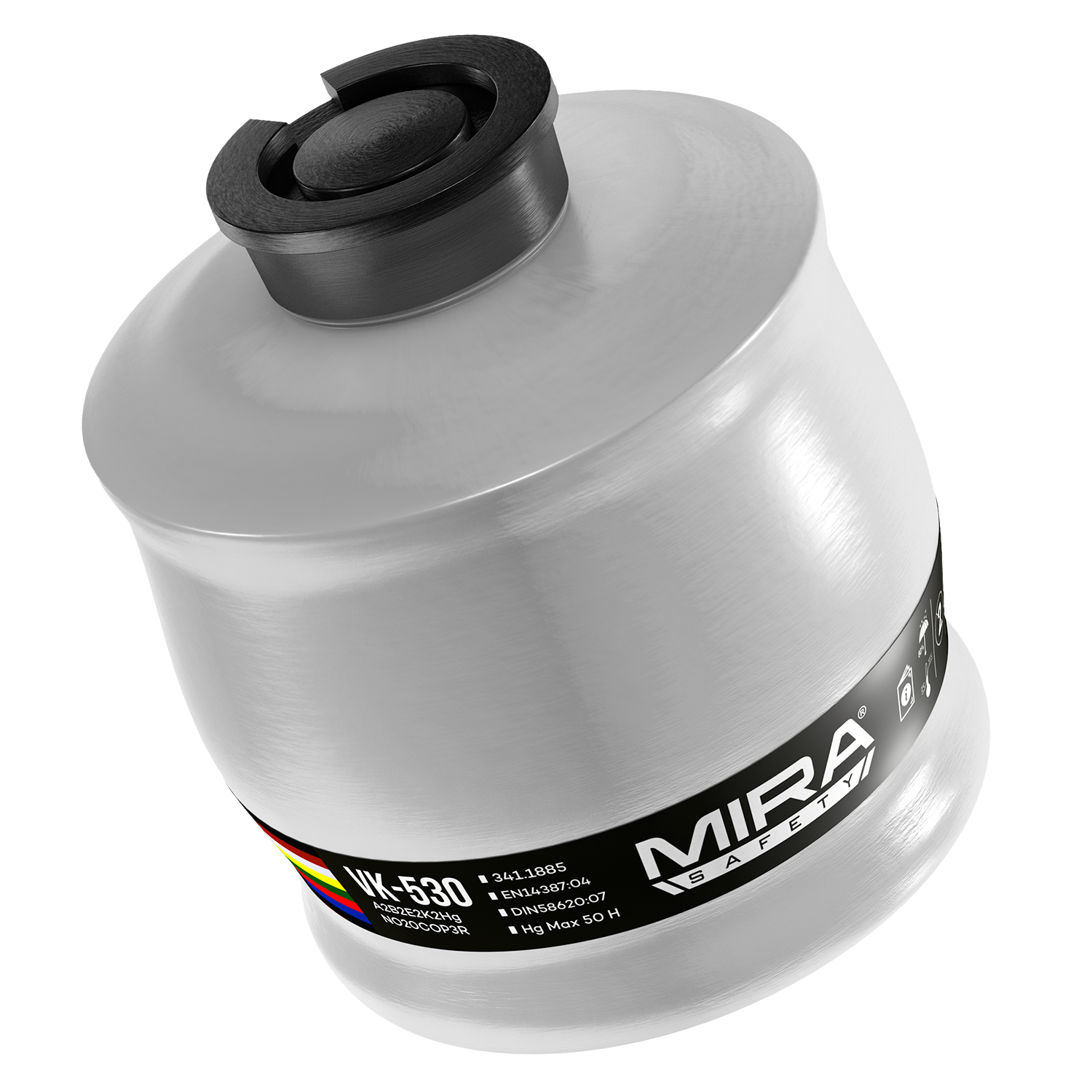

MIRA Safety VK-530™ Smoke / Carbon Monoxide Filter Cartridges

Name: MIRA Safety VK-530™ Smoke / Carbon Monoxide Filter Cartridges
Brand: MIRA Safety
SKU: FLT_VK530
Price: 89.99 USD
Availability: InStock
Rating: 4.92 (51 reviews)

Check out the 51 reviews

Enhanced toxic industrial chemical filter, purpose built to protect from smoke and carbon monoxide
Built to be functional under temperatures ranging from -40°С to +40°С for use in either extremely cold or hot environments
Made in Italy

^$89.99

View full details

VK-530 Smoke / Carbon Monoxide Filter

^$89.99

Shop with Confidence

If it doesn't fit, we will acquit

Free exchanges

Free shipping for

all U.S. orders

Got a question before you order?

Call us at 888-316-1462

Description

Transform your gas mask into a reliable, fully functioning multiuse smoke hood with these VK-530™ filters. Designed to overcome smoke and particulates (along with high concentrations of carbon monoxide), these advanced filters provide crucial hours of protection and clean air from some of the most common disasters faced by US citizens. Grab a few VK-530™ filters for your family today!

Key Features of VK-530™ Carbon Monoxide Filter:

Proven design provides comprehensive protection from a wide range of toxic industrial chemicals, smoke, and particulates.
Rated at A2B2E2K2HgNO20COP3R.
Smoke respirator mask filters can be used in environments with as little as 19.5% oxygen.
Offers protection against organic gases and vapors with a boiling point >65°C.
Provides protection from inorganic gases and vapors, sulfur dioxide, ammonia, oxides of nitrogen, carbon monoxide, mercury vapors, and compounds, as well as particles of toxic and highly toxic substances (P3).
Each filter is sealed and clearly labeled with its expiration date.
Five-year shelf life.
Manufacturer’s warranty ensures filters perform to specifications.
Manufactured in Italy.

Turn Your Gas Mask into a Respirator for Smoke with the VK-530™

Wildfires are a constant threat to the Western United States—where thousands of citizens may be forced to evacuate at a moment’s notice through choking clouds of smoke and searing heat. Meanwhile, over 71,000 homes are lost in structure fires every year, according to studies from the National Fire Protection Association (NFPA). Nevertheless, few own escape respirators or fire protection hoods.

That means that fire poses an immediate threat to millions of unprepared American families. Thankfully, VK-530™ gas mask filters provide a solution.

While most conventional multi-gas filters can protect you from a wide array of toxic industrial chemicals, the VK-530™ is one of just a few filters that can protect you from carbon monoxide and minimize the risk of smoke inhalation. More specifically, the VK-530™ helps to convert CO into CO2, allowing you to breathe it out. This means that gone are the days of you keeping an extra single-use fire/smoke hood on hand! Instead, you can use your existing gas mask for smoke protection in case of a house fire or wildfire.

If you’ve got a gas mask, or if you’re thinking about getting one, don’t overlook these flexible filters.

Storage of VK-530™ Gas Mask Filter

VK-530™ filters should be stored at 2°C (35.6°F) to 55°C (131°F), with humidity lower than 80%, away from any significant sources of vibration. They should be protected from solar radiation, oxidant agents, shocks, and anything that could make the filters fall down. Do not allow filters to come into contact with ketones, esters, hydrocarbons, acids and strong bases, high pressure fluids, and liquids.

Questions & Answers

Have a Question?

Ask a Question

Does this filter contain any asbestos?

No, it does not.
What happens if I use a filter beyond the specified shelf life? I know that it is not recommended, but is it a real hazard to life?

For safety purposes, we recommend that the filter's shelf life be strictly adhered to. Activated carbon degrades over time — we guarantee that so long as all the conditions are adhered to (i.e. storage conditions), the specs we put out on the filters will hold true at the end of its shelf life. Beyond the specified shelf life, we can no longer guarantee its effectiveness.
Viruses can only survive on surfaces for a period of a few days maximum. So if the only concern is only viruses like the coronavirus (and I don't have to worry at all about exposure to chemicals, etc.), why is it that gas mask filters cannot be reused after a few days, when any viruses that were on/in it will no longer be a danger?

For safety reasons, we cannot recommend reusing any filter. This would go against all safety standards set out by regulatory agencies all over the world regarding disposable filters.

If you insist on re-using a filter against COVID-19, it would be best to refer to CDC's guidelines. As new information is constantly being released regarding this virus, it would be best to refer to their updates on how long you'll need to quarantine an exposed filter before you can re-use it.
Will these work with the MIRA Safety CM-6M Tactical Gas Mask - Full-Face Respirator for CBRN Defense?

Yes, they will, as both are 40mm NATO threaded.
Once opened and in use, how long does this filter last before needing to be replaced?

That depends on a few factors, including the contaminant type, concentration, breathing rate, along with atmospheric conditions. Specifically for CO conversion, this filter is rated for 15 minutes at 5000ppm, which is the standard for smoke escape filters.
How does the NBC-77 SOF compare to VK-530? In terms of protection from smoke due to wildfires?

Both filters will work on smoke particles and certain gases/vapors that are produced when things burn. The VK-530, however, also contains an oxidizing agent that converts CO into CO₂, allowing you to breathe it out. It has been tested to convert CO for 15 minutes, at a concentration of 5000ppm.
In a few other answers, it was mentioned that these will fit the new GOST standard. Will these filters work on the Bayonet to GOST converter on the PMK-2. If not, will they work on the PMK-4,3 or S?

These filters will work with any 40mm NATO threaded mask or NATO threaded converter. I am not sure if your converter meets the EN 148 thread standard. If it does, it should work just fine.
Can VK-530 filters work with GOST thread masks?

These filters are threaded for 40mm NATO, so they cannot be threaded onto old-style 40mm GOST masks. They can, however, be used with masks that fit the new GOST standard which is 40x3.5mm, same as 40mm NATO.
Are these filters permitted to fly on airlines?

That depends on where you are flying. Each country has different laws on what can and cannot be imported. As per US regulations, you are allowed to travel with a set of personal protective equipment for personal use.
How long are the filters effective once opened and installed on a mask?

Filter use time depends on a few factors, including atmospheric conditions, contaminant type, concentration, along with your breathing rate. As a general rule of thumb, we would suggest having two filters per person per day for emergency evacuation purposes.
I am aware that a P3 filter is required to block the coronavirus. Which one of your filters is P3?

MIRA Safety filters (NBC-77 SOF, VK-530, DOTpro 320) are classified as "combined filters" and contain a P3 filter along with activated carbon. For those that don't know what P3 means, it is a rating for a particle filter that blocks 99.9999%+ of particulates. As viruses travel in liquid aerosols and particulates, this filter (when coupled with a full face respirator) would prevent the coronavirus from entering your breathing passages and eyes.
If I combine the VK-530 with the NBC-77 SOF filter (one on each side), would I get the benefits of both?

We recommend wearing one filter at a time as it's more comfortable and lowers the weight on your face. If you choose to wear two filters simultaneously, your filtration level would be equivalent to the filter that filters the least. In the case of the NBC-77 SOF and VK-530, the NBC-77 SOF does not oxidize CO, so the combo would still let CO into your lungs.
