COMPARISON CHART
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|
| Respirator Model | CM-8M® | CM-7M® | CM-6M® | CM-I01 | C21 | MD-1 | MD-2 |
| External Approvals | EN 136:1998, Class III, EN 148-1, EN-168 | EN 136:1998, Class III, EN 148-1 | EN 136:1998, Class III, EN 148-1, EN-168 | EN 136:1998 and European Regulation 2016/425 | EN 136:1998, Class III, EN 148-1, EN-168 | EN 148-1 | Tested according to MIL-STD-282 (method 204.1.1.), ASTM D638, ISO 2039-1, etc. |
| Country of Origin | Czech Republic | Czech Republic | Czech Republic | Italy | Italy | Serbia | Israel |
| Shelf-life | 20 years | 20 years | 20 years | 10 Years | 20 years (10 year valve change) | 10 years | 15 years |
| Weight | 540 g | 500 g | 560 g | 571g | 615 (fabric harness) | 500 g | 1330 g |
| Effective Field of Vision | 92.50% | 71.5% | 77.60% | N/A | 91.70% | >70% | N/A |
| Binocular/Overlapped Field of Vision | 85.70% | 34% | 83.80% | N/A | 88.20% | >70% | N/A |
| Filter Connection Thread | Rd 40 x 1/7" | Rd 40 x 1/7" | Rd 40 x 1/7" | Rd 40 x 1/7" | Rd 40 x 1/7" | Rd 40 x 1/7" (Hose) | Rd 40 x 1/7" |
| Sizes | Universal Size (medium) | Small, Medium, Large | Universal Size (medium) | Universal Size (medium) | 3 Sizes | Medium, Large | Universal Size |
| Material of the Facepiece | Bromobutyl rubber, non-irritating | Bromobutyl rubber, non-irritating | Bromobutyl rubber, non-irritating | Thermoplastic rubber | Bromobutyl rubber, non-irritating | Natural rubber, designed for comfort | 4-layer PVC/nylon/nylon/PVC for maximum tear-resistance |
| Visors | Polycarbonate | Silicate Glass | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate | 4-layer PVC/nylon/nylon/PVC for maximum tear-resistance |
| Drinking System | Yes | Yes | Yes | No | Yes | No | Yes |
| Exhalation Resistance | 60 Pa at 30 L/min | 60 Pa at 30 L/min | 60 Pa at 30 L/min | 118 Pa at 30 L/min | 85 Pa at 25 L/min | 90 Pa at 30 L/min | N/A |
| Tested resistance against NBC Agent (S-Mustard Gas) | 30 hours | >48 hours | 30 hours | 92 Pa at 30 L/min | 30 hours | 180 minutes | 240 minutes |
| Bottom Line | For both tactical and general purpose use, for use with firearms and night vision optics | Military and combat applications, for use with rifles and night vision optics | General purpose use, navigating toxic environments with full situational awareness | Designed for general industrial, construction and agricultural use, offering basic protection but it is not CBRN-rated. | For both professional and general purpose use, for use with firearms and night vision optics | Affordable CBRN protection for children | Simple to use, robust CBRN escape tool, able to accommodate younger children |
| Price | $339.95 | $289.95 | $199.00 | $159.99 | $529.95 | $231.95 | $599.95 |
| Shop now | Shop now | Shop now | Shop now | Shop now | Shop now | Shop now |
MIRA Safety CM-I01 Full Face Respirator
- Advanced valve design and hypoallergenic oro-nasal cup for optimized airflow, comfort, and minimized fogging.
- Designed to fit various face shapes, providing a reliable seal for a wide range of users.
- Compatible with 40mm NATO standard filters, ensuring interchangeability and wide availability.
- Filters for the CM-I01® are sold separately.
Couldn't load pickup availability
MIRA Safety CM-I01 Full-Face Respirator
OUR PRODUCTS ARE TRUSTED BY PROFESSIONALS ALL OVER THE GLOBE
We have established firm relationships with agencies worldwide and are deployed by:
The United States
DEPARTMENT OF DEFENSE
Czech Republic
MINISTRY OF DEFENSE
Turkmenistan
MINISTRY OF INTERIOR
Turkey
MINISTRY OF INTERIOR
South Africa
MINISTRY OF INTERIOR
Romania
MINISTRY OF DEFENSE
Portugal
MINISTRY OF INTERIOR
Lithuania
MINISTRY OF INTERIOR
Latvia
MINISTRY OF INTERIOR
Ukraine
MINISTRY OF DEFENSE
Shop with Confidence
If it doesn't fit, we will acquit
Free exchanges
Free shipping for
all U.S. orders
Got a question before you order?
Call us at 888-316-1462
Description
The CM-I01® Full Face Respirator is ruggedized and designed for general preparedness, home use, industrial, marine, medical, agricultural, and chemical applications.
This class-3 respirator provides superior protection against common workplace threats and toxic industrial chemicals, and lasting-comfort that makes it easy to use throughout your workday.
Key Features of the MIRA Safety® CM-I01® Full Face Respirator
- Designed to help protect the user from gases, vapors, solids, and liquid particulates
- Compatible with any 40mm NATO standard gas mask filter for interchangeability
- Advanced valve design optimizes airflow and comfort
- Panoramic Class 1 (EN 166) visor with scratch-resistant finish for maximum field of view
- Highly adaptable to comfortably fit various face shapes

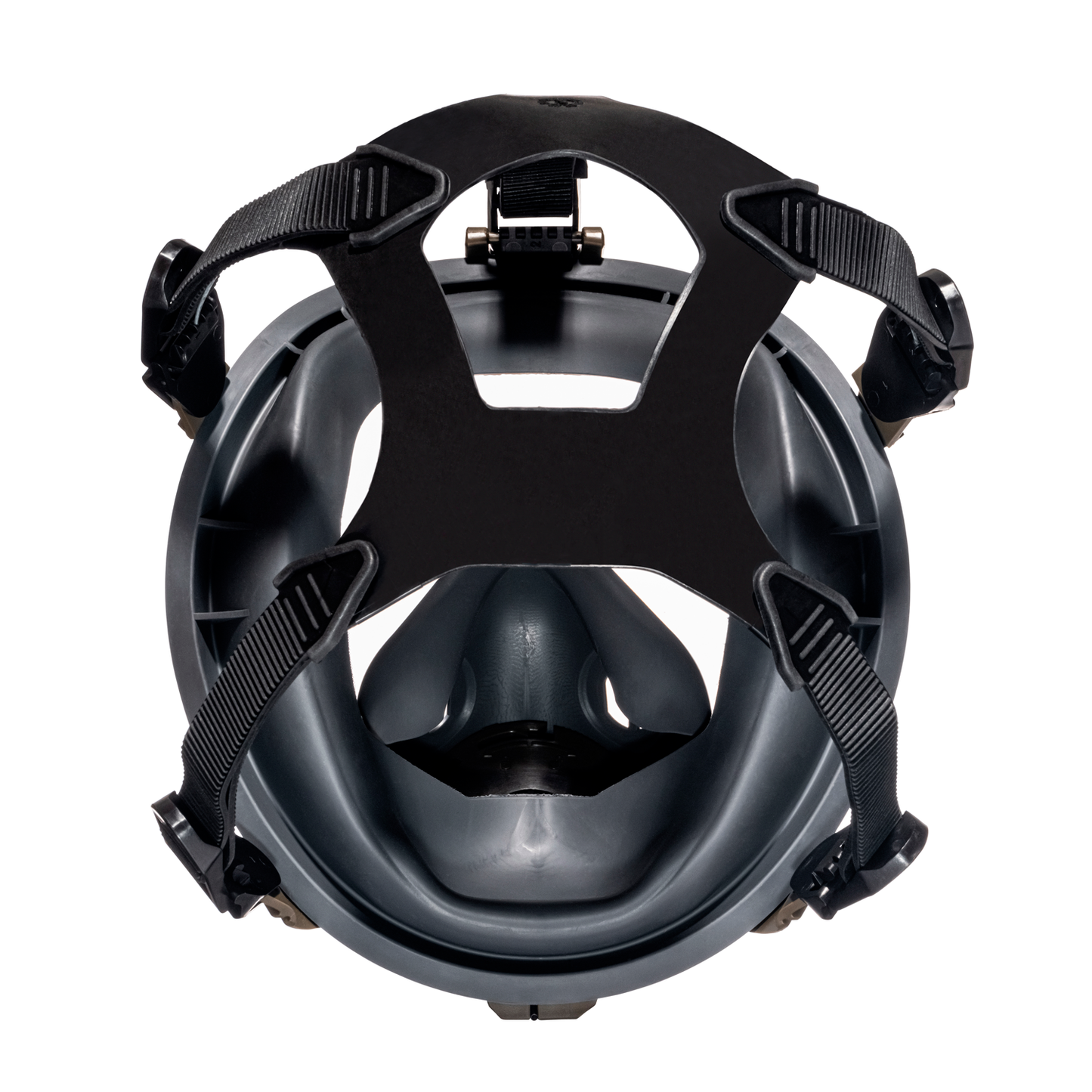

- 5-point adjustable head harness designed for maximum breathability and comfort
- Hypoallergenic oro-nasal cup minimizes fogging
- Available in 2 colors: Black and Olive Green (red, orange, white, and aquamarine colors coming soon)
- Ballistic resistance (STANAG 2920)
- 10-year shelf life with a 1-year warranty for long-term usage
- Class 3 certified according to EN 136:1998 and European Regulation 2016/425
- Made in Italy
Technical Specifications of the CM-I01® Full-Face Respirator
Featuring a state-of-the-art design with a one-piece visor, the CM-I01® uses standard 40-mm gas mask cartridges to protect the user from various toxins, chemicals, or hazardous byproducts on the job site or at home.
The visor is made from polycarbonate (with a special scratch-resistant coating) and the mask frame and oro-nasal cup are constructed from thermoplastic rubber. Connectors are polyamide (PA) and the harnesses made from EPDM.
Thanks to its unique design, the CM-I01® contours to fit a wide range of face shapes and sizes while retaining a perfect seal and protecting the user.
The CM-I01® is a certified class 3 respirator, meaning it meets minimum standards for mechanical, heat, and flame resistance. End-user maintenance is minimal, with no tools required.
The CM-I01® comes with a 1-year warranty from MIRA Safety®.
IMPORTANT NOTE: The CM-I01® is designed for industrial/general use and is NOT a CBRN gas mask considering the face seal is not resistant to blister agents. This mask will work to block many CBRN agents when coupled with the appropriate filter, but considering the rubber, it is not intended to be a dedicated CBRN mask. Filters for the CM-I01® are sold separately.
TECHNICAL DATA of CM-I01® of Full-Face Respirator
|
WEIGHT |
571g |
|
SIZE |
Medium |
|
MATERIAL OF THE FACEPIECE |
Thermoplastic rubber |
|
VISOR |
Complies with EN 136:2000 |
|
MATERIAL OF THE VISOR |
Polycarbonate |
|
FILTER CONNECTION THREAD |
Rd 40 x 1/7" |
|
INHALATION RESISTANCE |
1.18 mbar (118 Pa) |
|
EXHALATION RESISTANCE |
0.92 mbar (92 Pa) |
|
WEIGHT |
571g |
|
SIZE |
Medium |
Storage Temperature of CM-I01® of Full-Face Respirator
-10°C to 50°C (-50°F to 122°F)
Relative humidity <80%
STORAGE of CM-I01® of Full-Face Respirator
The CM-I01® Full-Face Respirator must be stored in a dark, cool, and dust-free place free from sudden temperature changes. The storage environment should be ventilated regularly. Temperatures may vary between 10°C and 50°C (-50°F to 122°F), with relative humidity up to 65%. Full-face respirators must not be stored where they will be exposed to radiant heat or sunshine. Fuels, solvents, lubricants, and other flammable substances, including chemicals, must not be stored with masks. Moreover, there must not be any electrical machines or appliances that produce sparks or discharges during operation (ozone creation).
Avoid deformation of the rubber parts of the facepiece and internal gas mask during storage.
Youtube Feed
Failed to Load Videos
[[ video.title ]]
Video ID: [[ selectedVideo.id ]]
Embed URL: [[ selectedVideo.embedUrl ]]
Unable to load video
Video ID: [[ selectedVideo.id ]]
Embed URL: [[ selectedVideo.embedUrl ]]
Comments ([[ selectedVideo?.commentList ? selectedVideo?.commentList.length : 0 ]] of [[ selectedVideo.comments || 0 ]]) ([[ selectedVideo.comments || 0 ]])
No comments available
[[ cleanCommentText(comment.text) ]]
Showing [[ selectedVideo?.commentList ? selectedVideo?.commentList.length : 0 ]] of [[ selectedVideo.comments || 0 ]] comments
Visit YouTube to see all comments
Questions & Answers
Have a Question?
-
Will this mask protect against tear gas?
With the appropriate filter, yes, it will protect against tear gas. For filter options, we suggest the P-CAN or NBC-77 SOF for this application.
-
What is the main difference between this respirator and the CM-6M or 7M? Will this respirator work for CBRN threats?
The CM-I01 is designed to be an affordable general purpose respirator, and there is no drinking system or speech diaphragm (like that on the 6M and 7M). As for threats, with the right filter installed, this mask will work for CBRN threats, minus blister agents like sulfur mustard (H,HD,HT), nitrogen mustard (HN-1, HN-2, HN-3), Lewisite (L), and halogenated oximes (CX). In order to protect against blister agents, the face seal should be made of a different type of rubber which is resistant to those threats.
